Cottesloe Beach Shade Structure for Space Agency Architects

Architect: Space Agency

Engineer: WA Structural Consulting Engineers Pty Ltd

The client required a digital model in order to simulate a folding shade structure that is developed from a flat rectangular plane. Upon folding, the perimeter facets were required to remain a fixed length, with the form being determined by interactively moving the nodes or 'points' in the XYZ coordinates.

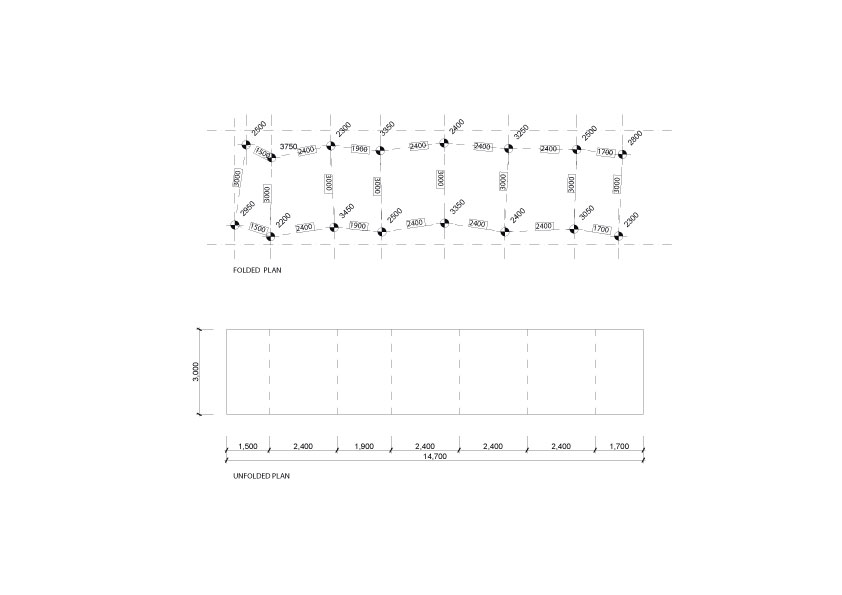

1. Plan provided by the client
       
     
1. Plan provided by the client

The plan highlights the edge lengths required to be fixed within the simulation model.

2. Paper model provided by the client
       
     
2. Paper model provided by the client

The simulation model was based off this paper model. The need for the model was to be able to accurately determine the z height for each of the nodes at any one time, as well as having a digital model that could be sent to the engineer.

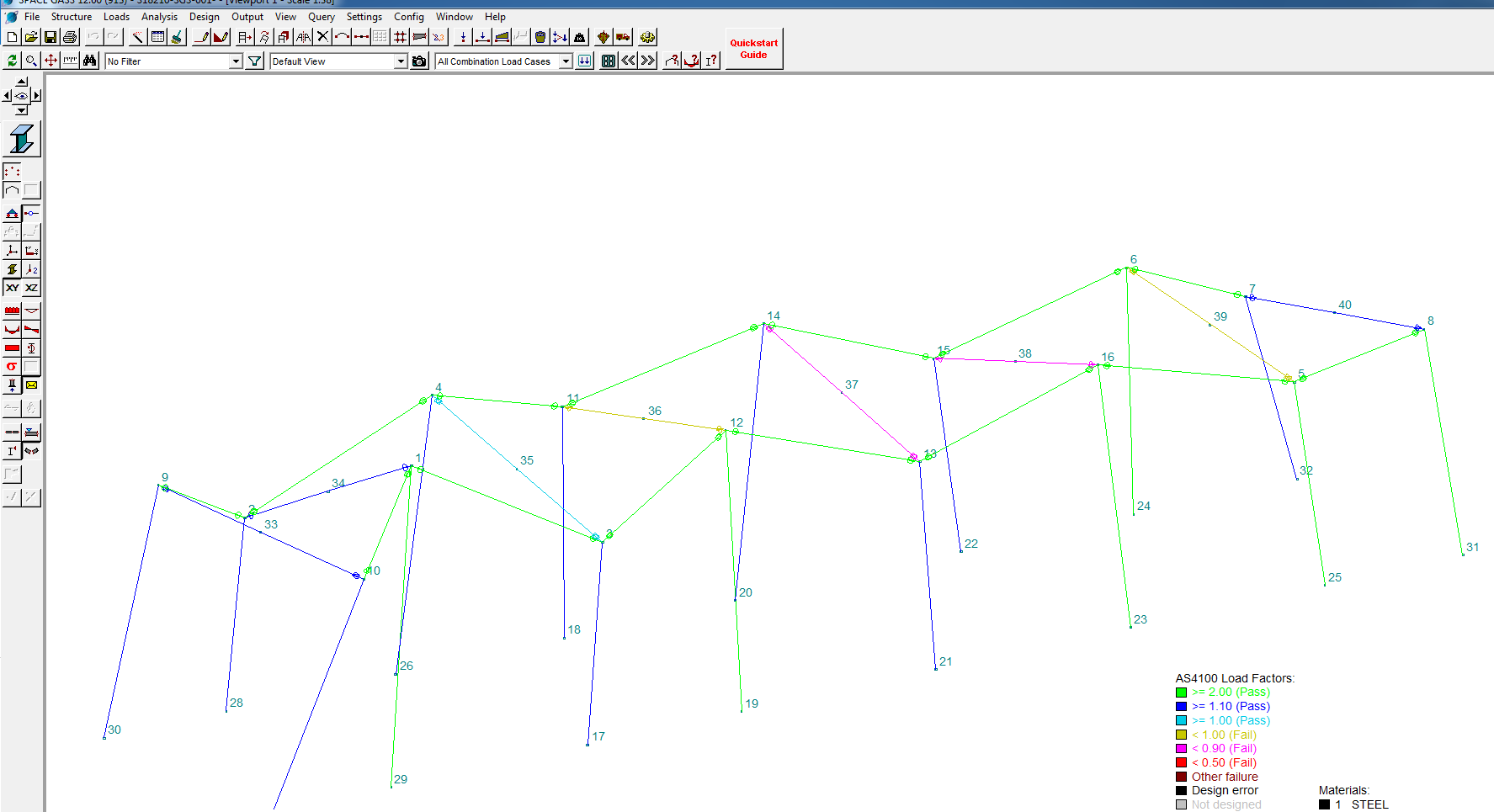

3. Structural Analysis provided by Engineer
       
     
3. Structural Analysis provided by Engineer

The digital model was sent to the engineer who was then able to provide feedback on the outcomes of the simulation

4. Outputs provided by the Engineer
       
     
4. Outputs provided by the Engineer
